ABB M1M Series Power Meter

Advanced power metering solution for precise energy monitoring

Contact Us View Specs

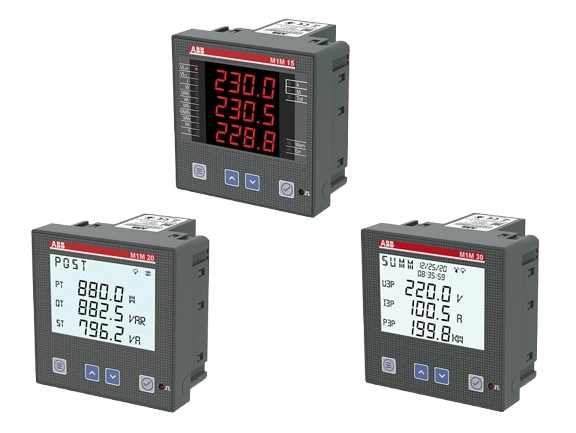

M1M Series Power Meter

Key Features

Measurement Accuracy
  • Class 0.5S accuracy
  • True RMS measurements
  • Harmonic analysis up to 40st
Voltage Range
  • 100-400V (L-N), 100-690V (L-L)
  • Power factor monitoring
  • Voltage/current unbalance
Connectivity
  • Modbus RTU
  • Modbus TCP
  • Multiple protocols support
User Interface
  • LCD display with backlight
  • LED display for Compacts and M1M15
  • Intuitive navigation

Technical Specifications

Measurement Accuracy Class 0.5S (IEC 62053-22)
Voltage Range 100-400V (L-N), 100-690V (L-L)
Current Range 1-5A nominal, 6A maximum
Frequency 45-65 Hz
Operating Temperature -25°C to +70°C
Protection Class IP54 (front), IP20 (rear)

Ready to Get Started?

Contact us to learn more about this product.
